1.What is a linear slide with an oil cartridge?

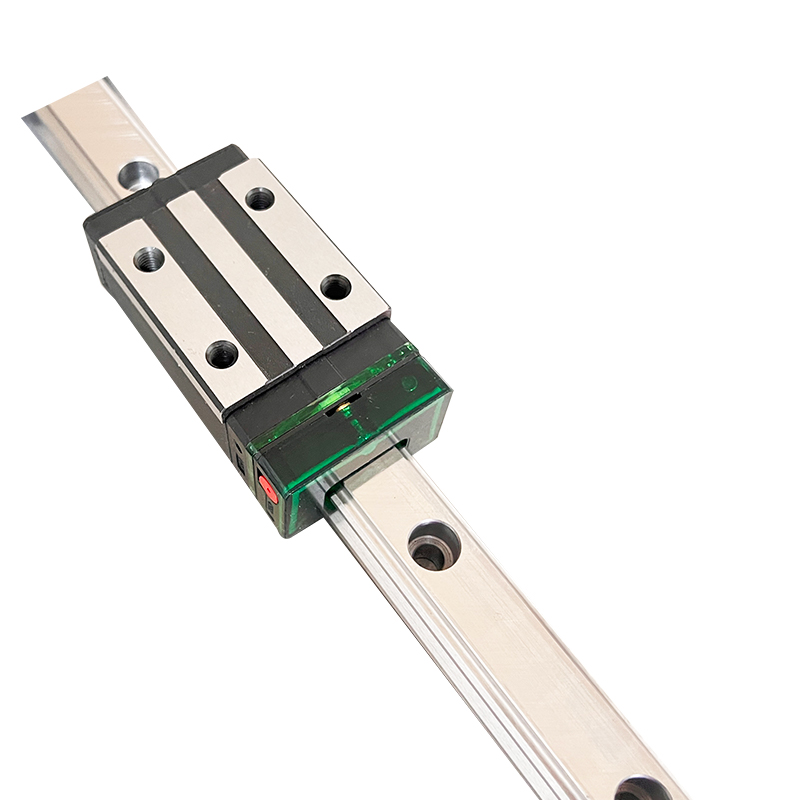

It integrates an automatic lubrication system with a standard linear slide. The core component of this system, the oil cartridge, is the oil storage and supply component.
Linear slide: Responsible for carrying and achieving high-precision linear reciprocating motion.
Oil cartridge: A removable or refillable container filled with grease (butter) or oil.
Oil connection: An oil pipe connects the oil cartridge to the oil filling hole on the slide.
The entire system forms a miniature, continuously operating automatic lubrication device.
2. Working Principle
The automatic lubrication principle is based on two main methods:
Gravity: For some simple structures, the lubricant slowly and continuously drips or seeps into the ball recirculation groove and slider of the slide under the influence of gravity or capillary action.
Pressure differential/piston thrust (more common):
The oil cartridge contains a piston.
When the system is operating, the grease is very slowly and quantitatively pressed into the slider of the slide through the oil pipe under the continuous pressure of the piston. This design ensures a steady flow of lubricant, uninterrupted by external pressure fluctuations.
In both cases, the goal is to achieve intermittent, minimal, and continuous lubrication, ensuring a constant thin film of oil on the ball bearings and rail surfaces.
III. Key Advantages and Features
Extended Service Life: Continuous lubrication significantly reduces wear and corrosion between the balls, deflectors, and rails, significantly extending the service life of the rails and sliders.
Maintaining High Precision: Stable lubrication ensures smooth operation and prevents loss of precision and slippage caused by dry friction.
Reduced Maintenance Costs:
Automation: Eliminates the need for frequent manual lubrication, saving manpower and downtime.
Consistency: Eliminates problems caused by forgotten lubrication or over/under lubrication.
Suitable for Harsh Environments: Effectively removes contaminants from the slider in dusty, humid, or high-temperature environments, providing a seal and cleaning effect.
Improves Equipment Reliability: This system is crucial for automated equipment where shutdowns are difficult or access to lubrication points is difficult.
IV. The Difference Between Linear Guide Sliders with Oil Cartridges and Oil Nozzles
Linear Guide Sliders with Oil Cartridges: Require manual lubrication with a grease gun at regular intervals.
Linear Guide Sliders with Oil Cartridges: Provide an automatic, continuous minimal lubrication system.
Advantages and Disadvantages:
Advantages: Simple structure, low cost, and easy modification.
Disadvantages:
Reliant on manual labor: Easy to forget, delay, or neglect.
Uneven lubrication: Difficult to control the amount of oil. Excessive oiling can increase resistance and pollute the environment; insufficient oiling can result in insufficient lubrication.
Required downtime: Impacts continuous equipment operation.
Safety Hazards: Manual lubrication is inconvenient for large equipment or in inaccessible locations.
How to Choose Between the Two?
Choose a Guide with Oil Cartridges if:
The equipment does not operate continuously 24/7.
There is convenient operating space and personnel for regular maintenance.
The project budget is very tight.
Lubrication accuracy and consistency are not critical.
Choose a Guide with Oil Cartridges if:
Your equipment is fully automated and unmanned. Equipment requires continuous production, resulting in high downtime costs.
The slide rails are installed in difficult-to-access locations (e.g., high-altitude locations, deep within equipment).
Equipment reliability and lifespan are extremely demanding (e.g., precision machine tools, semiconductor equipment).
Summary:
Linear guide sliders with oil cartridges are the preferred lubrication solution for modern, high-reliability equipment. Please contact us for more information.
