What Are Trapezoidal Lead Screws?

What Are Trapezoidal Lead Screws?

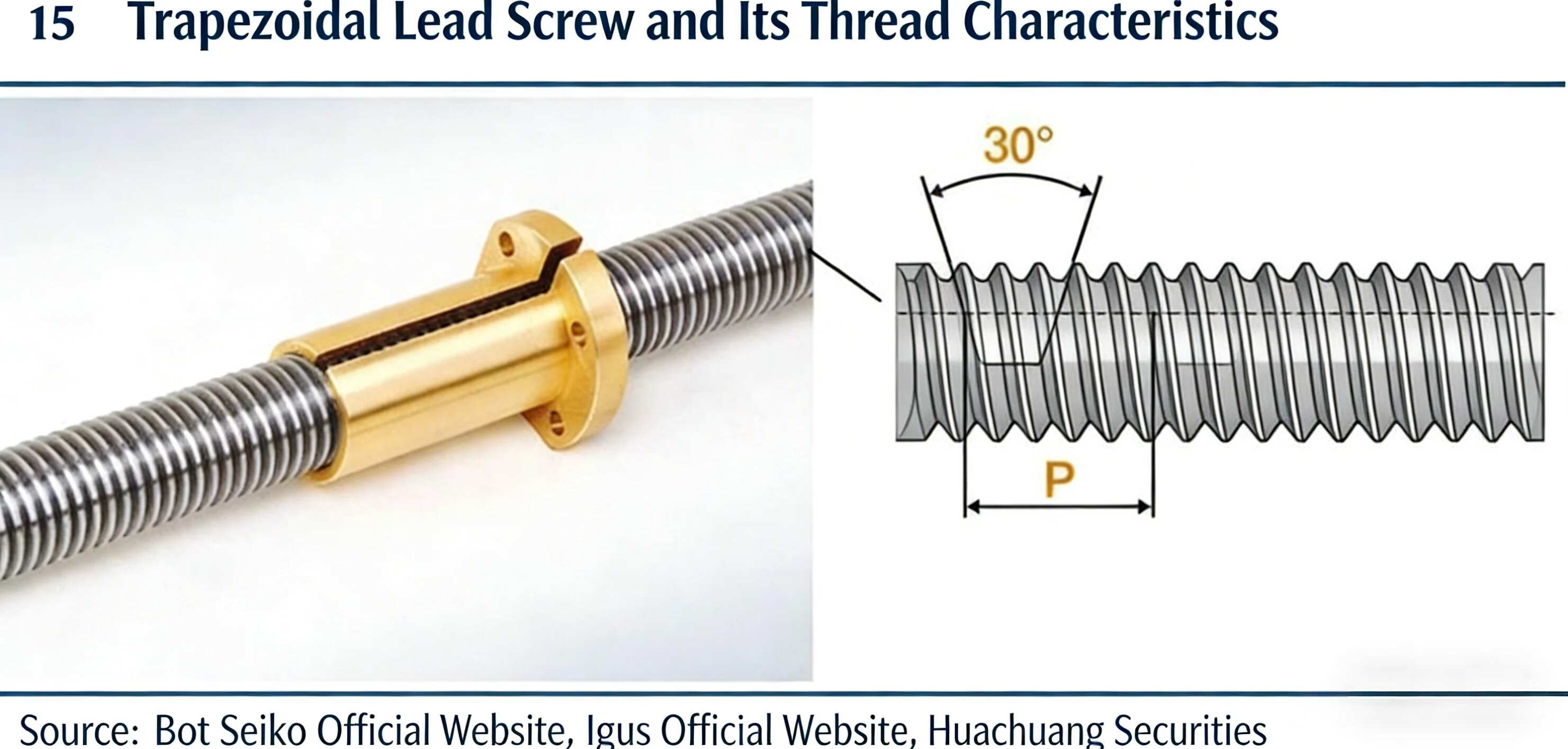

A trapezoidal lead screw is a mechanical drive component that converts rotational motion into linear motion. It consists of a threaded screw shaft and a mating nut (typically made of brass or bronze for self-lubrication). Unlike ball screws, trapezoidal screws use acme/trapezoidal thread profiles—characterized by flat, parallel helixes—to transfer torque, making them ideal for low-to-medium speed, moderate-load applications.

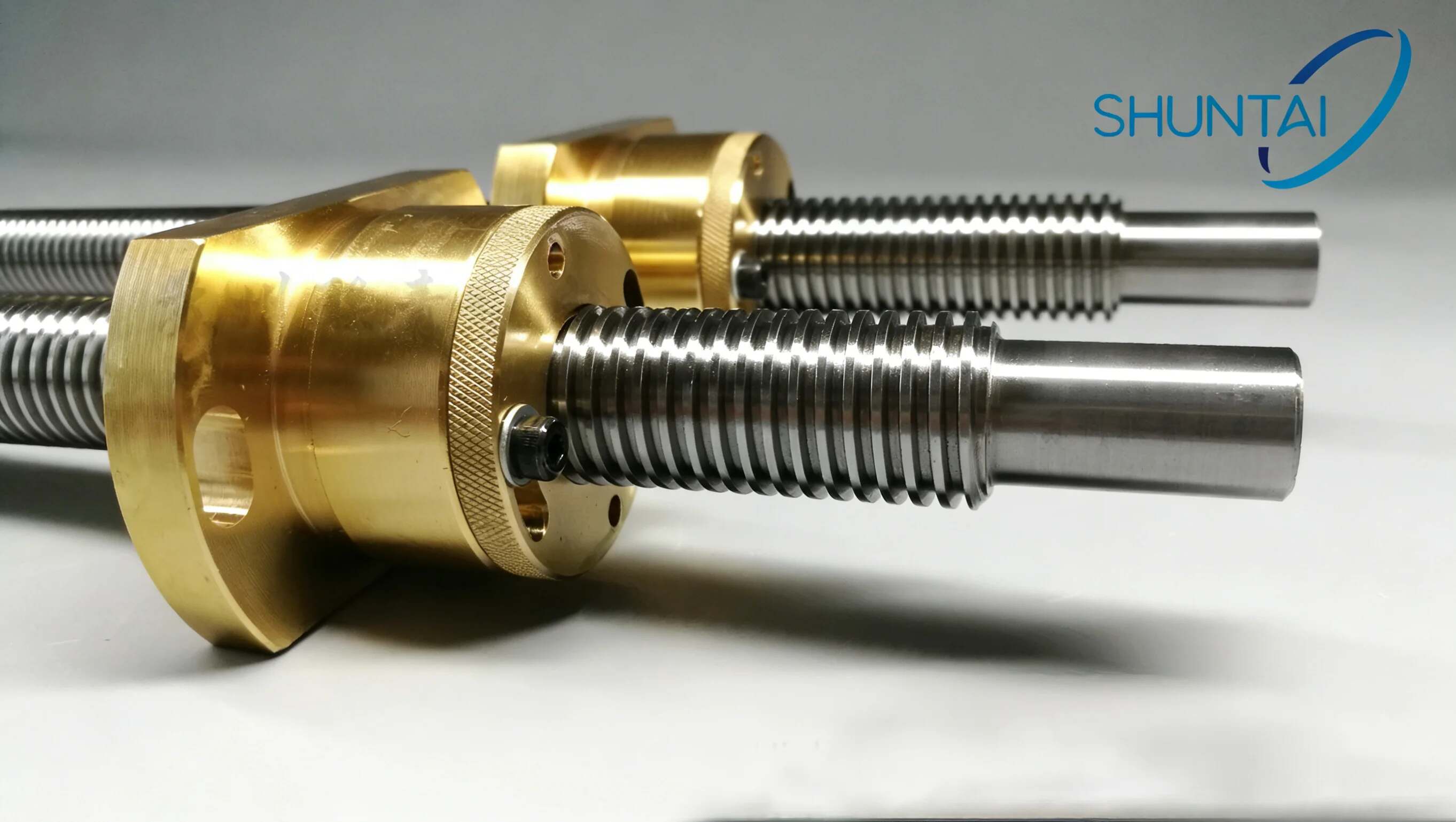

Key Features of Our 45# Steel Trapezoidal Lead Screws (T10-T36)

Our 45# carbon steel trapezoidal lead screws (available in right-hand/left-hand thread, sizes T10 to T36) are engineered for durability and cost efficiency:

· Material & Durability: Made from 45# carbon steel (with optional GCr15 bearing steel for high-load scenarios) and paired with brass/bronze nuts for wear resistance and quiet operation.

· Manufacturing Process: Available in rolled (cost-effective for general use) or ground (high-precision) screw shafts to match your application requirements.

· Self-Locking Design: Trapezoidal threads provide inherent self-locking, eliminating the need for external brakes in many vertical lifting applications.

· Long Service Life: Precision machining and corrosion-resistant surface treatments ensure reliable performance under continuous operation.

· Flexible Sizing: Sizes range from T10 to T36, with custom lengths and thread directions (right-hand/left-hand) available to suit your machine design.

Thanks to their simple, reliable structure and lower cost compared to ball screws, trapezoidal lead screws are widely used across industries:

· Industrial Machinery: Conveyors, packaging machines, and material handling equipment.

· Automation & Robotics: Linear actuators, positioning stages, and pick-and-place systems.

· CNC Machines & 3D Printers: Z-axis lifting mechanisms and low-speed linear drives.

· Lifting & Adjustment: Scissor lifts, medical tables, and height-adjustable workstations.

· Other Fields: Valve actuators, printing presses, and textile machinery.

Trapezoidal Screws vs. Ball Screws: Which to Choose?

Why Choose Our Trapezoidal Lead Screws?

Customization: We offer full customization of thread size (T10-T36), length, thread direction (right/left hand), and nut design to fit your exact machine requirements.

Material Options: Choose from 45# carbon steel, GCr15 bearing steel, and brass/bronze nuts to balance strength, wear resistance, and cost.

Quality Assurance: All screws undergo precision inspection to ensure thread accuracy, surface finish, and dimensional consistency.

Fast Delivery: Standard lead time of 7 days, with expedited options available for urgent orders. Shipping from Shanghai port to global destinations.

Cost Efficiency: Lower total cost of ownership compared to ball screws, without sacrificing reliability for your linear motion needs.

When selecting a lead screw for your application, always evaluate:

· Load capacity: Maximum axial force the screw must handle.

· Speed & duty cycle: Operating speed and continuous run time.

· Precision requirements: Positioning accuracy and backlash tolerance.

· Environmental factors: Temperature, dust, and lubrication access.

· Budget constraints: Balancing performance with upfront and long-term costs.

If you’re looking for a reliable, cost-effective linear motion solution for your industrial equipment, our 45# steel trapezoidal lead screws (T10-T36) are an excellent choice. Contact us today to discuss your custom requirements and get a competitive quote.
